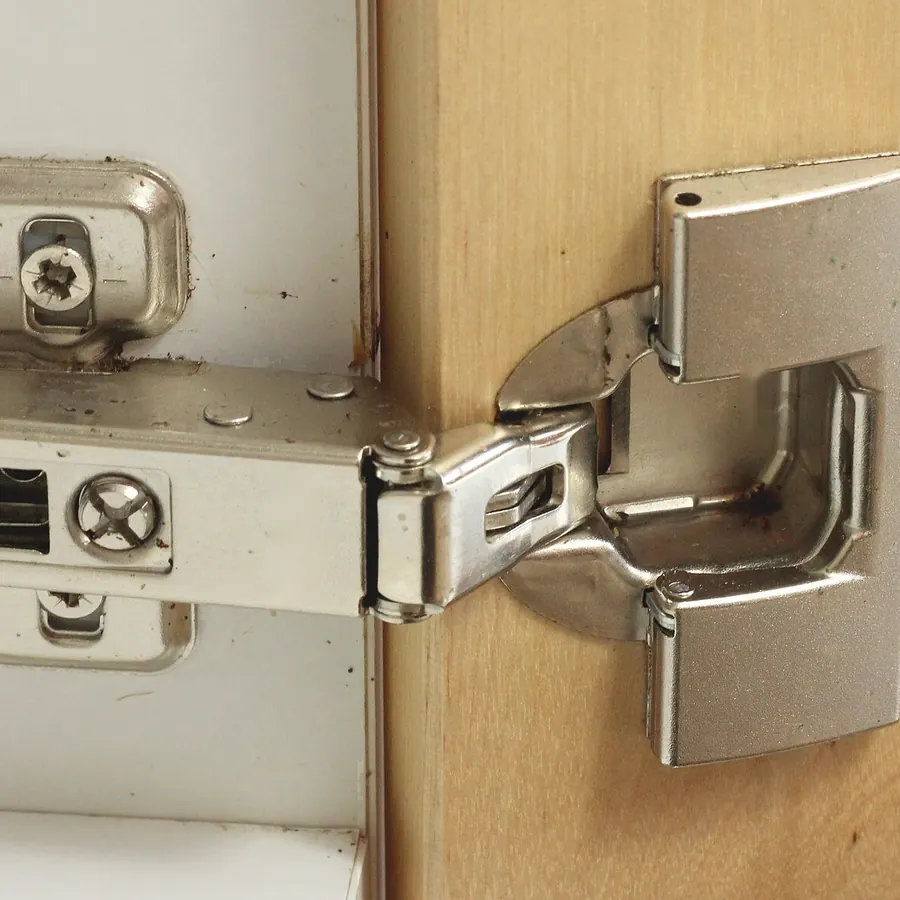

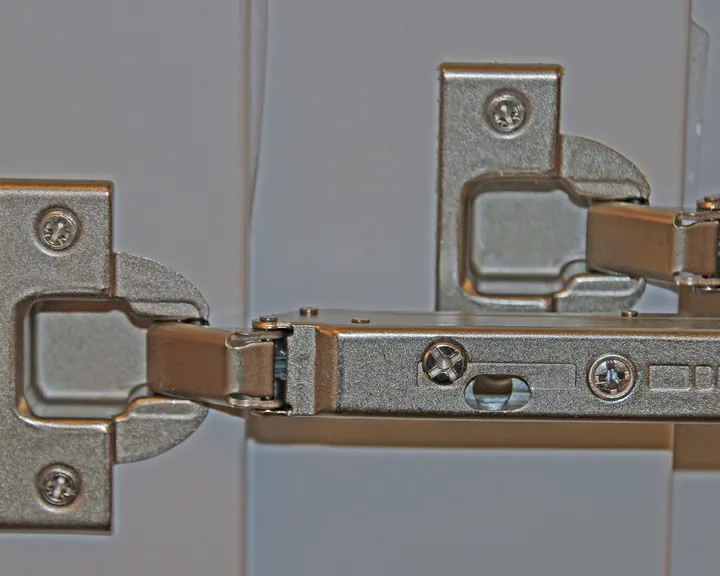

35 mm concealed cabinet hinges
The standard hinge on most cabinet doors. Choose the closing type, mounting, door position, angle and finish; we confirm every option in writing.
Specified for your door
The standard hinge on most cabinet doors: hidden when closed and adjustable after fitting. Every option below is confirmed in writing before production.
- Closing
- Soft-close (hydraulic), self-closing spring, push-to-open
- Mounting
- Clip-on or slide-on plate
- Door position
- Full overlay, half overlay, inset
- Opening angle
- 95°–110° standard, up to 165° wide-angle
- Adjustment
- 2D or 3D after fitting
- Finish
- Nickel-plated steel, stainless steel, black
Full overlay, half overlay or inset?
The door position decides the hinge arm. Look at your cabinet from above and pick the match.

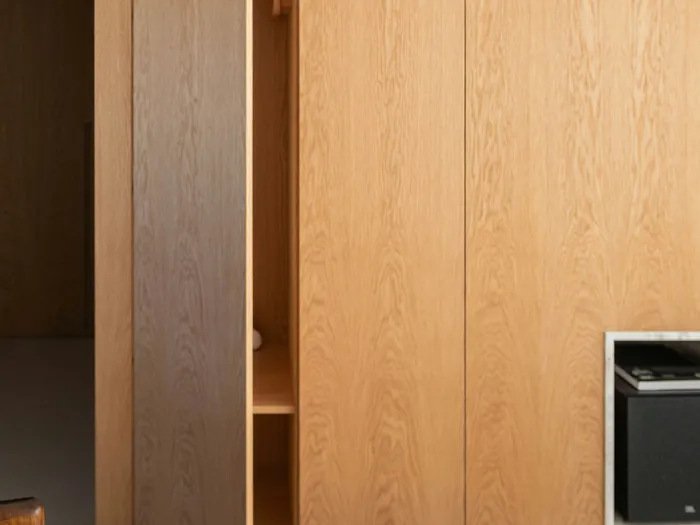

Full overlay
The door covers the whole side panel. The most common kitchen layout.
Straight-arm hinge

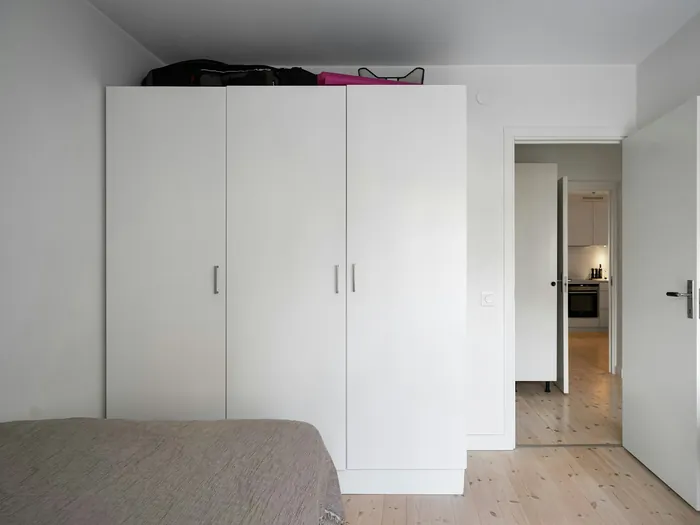

Half overlay
Two doors share one side panel, each covering half of it. Typical in multi-door wardrobes.
Half-cranked hinge

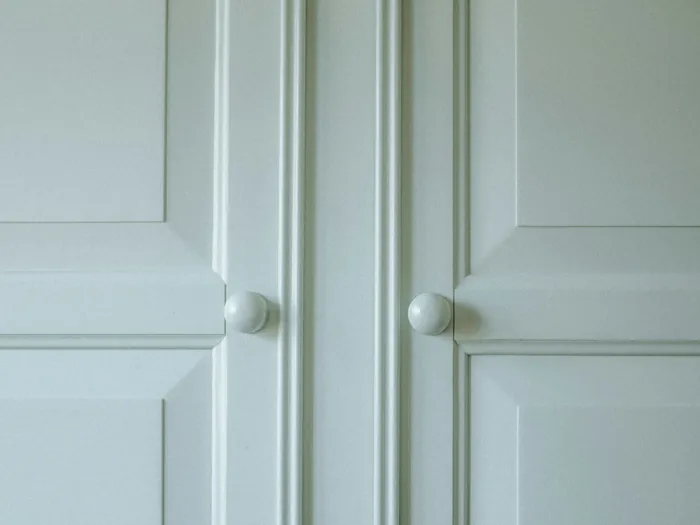

Inset
The door sits inside the cabinet frame, flush with the front.
Fully cranked hingeWhat to send us
- Door thickness and material
- Door height and approximate weight
- Door position: full overlay, half overlay or inset
- Opening angle and closing type
- Quantity and destination country
- A photo of your current hinge, if you have one
What we request from the factory
- Open-close cycle test results (EN 15570 method; quality hinges pass 50,000 cycles or more)
- Neutral salt spray test results for corrosion resistance
- Photos and drawings of the exact model you order
- Its business licence and factory details
Key dimensions at a glance
Send us these values, or a photo with a ruler next to your current hinge, and we match the hinge to your door.
| Dimension | Typical value | Why it matters |
|---|---|---|
| Cup diameter | 35 mm | Standard boring bit; fits most European-style cabinets |
| Cup depth | 11–13 mm | Sets the minimum door thickness |
| Door thickness | 14–22 mm (deep-cup versions for thicker doors) | Thicker doors need a deeper cup and a stronger arm |
| Boring distance (K) | 3–6 mm from the door edge | Changes how much the door overlaps the side panel |
| Plate fixing | Screw-on, or pre-mounted euro screws / dowels | Decides how fast the hinge is fitted on the line |
| Opening angle | 95°, 100°, 105°, 110°; 165° wide-angle | Wider angle for pull-outs and corner units |
Figures are typical values for this product type. The exact specification, tolerances and test results for your model are confirmed in writing with your quote.
How many hinges does a door need?
Too few hinges is the most common reason a door drops or a soft-close stops working. We check the count with you before we quote.
| Door height | Door weight up to | Hinges per door |
|---|---|---|
| Up to 900 mm | about 4–6 kg | 2 |
| 900–1,600 mm | about 9–12 kg | 3 |
| 1,600–2,000 mm | about 13–17 kg | 4 |
| 2,000–2,400 mm | about 18–22 kg | 5 |
What the hinge lets you adjust
Side adjustment
Moves the door left or right to even the gaps, typically ±2 mm.
Depth adjustment
Moves the door in or out against the cabinet front, typically −2 to +3 mm.
Height adjustment
Lifts or lowers the door, typically ±2 mm, on 3D plates or cam plates.
Soft-close
A hydraulic damper slows the door in the last few degrees. Built into the arm or clipped on.
Self-closing spring
Pulls the door shut from about 30–40° without a damper. Lower cost.
Push-to-open
No handle: a light push opens the door. Used with handle-less fronts.
Choosing the finish
| Finish | Best for | Ask the factory for |
|---|---|---|
| Nickel-plated steel | Kitchens, wardrobes, dry rooms | Plating thickness, salt spray hours |
| Stainless steel (e.g. SUS304) | Bathrooms, humid rooms, coastal climates | Material certificate, salt spray hours |
| Black or coloured coating | Design furniture, dark interiors | Coating type and scratch resistance |
Figures are typical values for this product type. The exact specification, tolerances and test results for your model are confirmed in writing with your quote.
Have a hinge you need to match?
Send us a photo, a drawing or a product code. We will find matching options and reply within two business days.
